Greenman Reel Mower

Name: Greenman Reel Mower
Brand: Agricare Corporation
Availability: OutOfStock

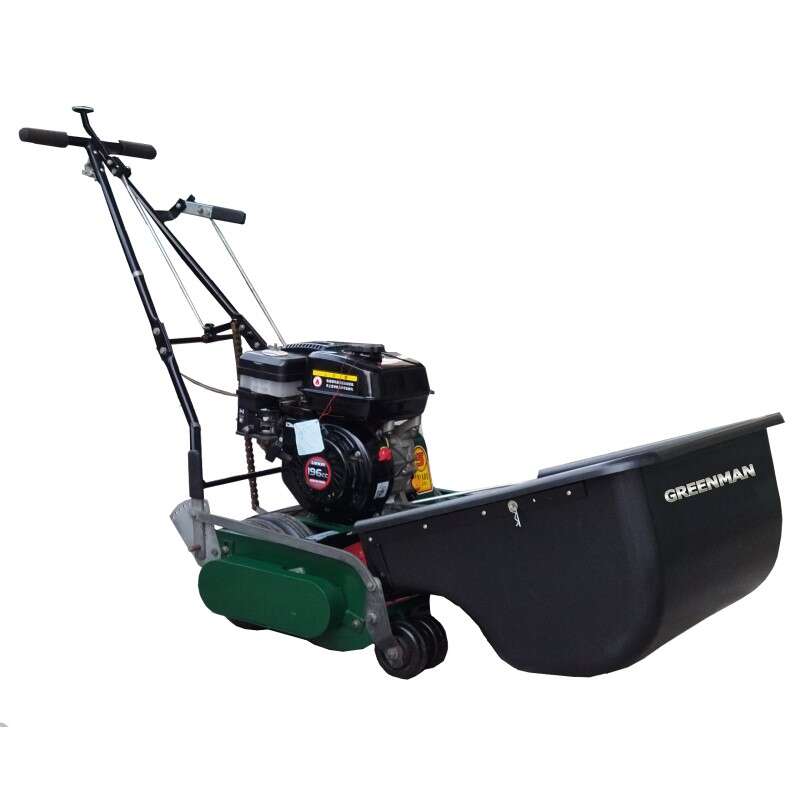

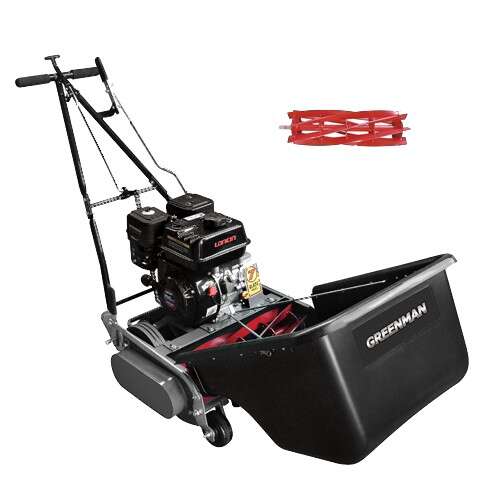

Greenman Reel Mower is the classic commercial-quality mower fitted with a 20″ or 25″ blade.

Rs. 0.00

Sale Buy Now

Shipping calculated at checkout.

Model RM20L Reel Mower RM25L Reel Mower

Product variants

Quantity

Request a Quote

Description
Features
Specifications
Application

Greenman Reel Mower is the classic commercial-quality mower fitted with a 20" or 25" blade.

The reel mowers are designed for easy operation, durability, serviceability and high performance. Lawn cuttings are delivered forward into the catcher instead of backward toward the operator. The large poly grass catcher saves many stops and starts. The high-speed reel produces a neat lawn, smooth as carpet and free of reel marks. Fingertip controls provide ease and safety of operation. The perfect balance of the machine allows easy manoeuvrability. The heavy-duty roller drive provides positive traction and mobility.

Categories: Lawn Mower, Reel Mower, Turf Machinery

Specification	RM20	RM20L	RM20RA	RM25	RM25L	500 Golf Twin Drive
Brand	California Trimmer USA	Greenman	Yard Star Australia	California Trimmer USA	Greenman	SteelFort, NZ
Engine Brand & Model	Honda GX160 Petrol Engine	Loncin G200F Petrol Engine	Loncin G200F Petrol Engine	Honda GX160 Petrol Engine	Loncin G200F Petrol Engine	Honda GX160 Petrol Engine
Engine Type	Single cylinder, 4-stroke, Forced air, OHV	Single cylinder, 4-stroke, Forced cooling, OHV	Single cylinder, 4-stroke, Forced cooling, OHV	Single cylinder, 4-stroke, Forced air, OHV	Single cylinder, 4-stroke, Forced cooling, OHV	Single cylinder, 4-stroke, Forced air, OHV
Displacement	163cc	196cc	196cc	163cc	196cc	163cc
Net Power	4.8hp (3.6kW) @ 3600rpm	5.5hp (4.1kW) @ 3600rpm	5.5hp (4.1kW) @ 3600rpm	4.8hp (3.6kW) @ 3600rpm	5.5hp (4.1kW) @ 3600rpm	4.8hp (3.6kW) @ 3600rpm
Bore × Stroke	68×45mm	68×54mm	68×45mm	68×45mm	68×54mm	68×45mm
Net Torque	10.3Nm @ 2500rpm	12.4Nm @ 2500rpm	12.4Nm @ 2500rpm	10.3Nm @ 2500rpm	12.4Nm @ 2500rpm	10.3Nm @ 2500rpm
Starting System	Recoil start	Recoil start	Recoil start	Recoil start	Recoil start	Recoil start
Lubrication System	Splash	Splash	Splash	Splash	Splash	Splash
Air Cleaner	Dual Element	Semi-dry Dual Element	Semi-dry Dual Element	Dual Element	Semi-dry Dual Element	Dual Element
Oil Capacity	0.58L	0.6L	0.6L	0.58L	0.6L	0.58L
Fuel Tank Capacity	3.1L	3.6L	3.6L	3.1L	3.6L	3.1L
Mowing Width	20″/508mm	20″/508mm	20″/508mm	25″/635mm	25″/635mm	19.6″/500mm
Mowing Height	11-38mm	12.7-31.5mm	6-23mm	11-38mm	11-38mm	2-30mm
Cylinder Diameter	6.3″/161mm	6.3″/161mm	5.7″/146mm	6.3″/161mm	6.3″/161mm	6.3″/161mm
Cylinder Blade	7pcs	5pcs	6pcs, 55Si2Mn	7pcs	7pcs	10 Blade Reel with Turf Rake
Blade Material	Alloy Steel	Alloy Steel	Alloy Steel	Alloy Steel	Alloy Steel	Alloy Steel
Bed Knife Material	T8A	T8A	T8A	T8A	T8A	T8A
Bearing	NSK	NSK	NSK	NSK	NSK	NSK
Bolt	Metric	Metric	Metric	Metric	Metric	Metric
Handle	⌀22mm welded pipe	⌀22mm welded pipe	⌀22mm welded pipe	⌀22mm welded pipe	⌀22mm welded pipe	⌀22mm welded pipe
Clutch	Softwood friction	Softwood friction	Softwood friction	Softwood friction	Softwood friction	Softwood friction
Rear Roller	—	—	Front: 2.6″/67mm; Rear: 7.7″/190mm Iron roller, Powder metallurgy	—	—	Front: 2.6″/67mm; Rear: 7″/178mm PVC roller
Grass Catcher	Plastic box 65L	Plastic box 65L	Iron box 65L	Plastic box 82L	Plastic box 82L	High-Density Plastic box 40L
Drive System	By chain	By chain	By chain	By chain	By chain	By chain
Deck	High strength constructional steel, 5mm thickness	High strength constructional steel, 5mm thickness	High strength constructional steel, 3mm thickness	High strength constructional steel, 5mm thickness	High strength constructional steel, 5mm thickness	Steel, 3mm thickness
Forward Speed	5.65km/h	5.65km/h	6.2km/h @ 2600rpm	5.65km/h	5.65km/h	6km/h
Wheel Size	4″/8.5″	4″/8.5″	4″/8.5″	4″/8.5″	4″/8.5″	2.6″/7″ rollers
Driven Wheel	152mm	152mm	190mm	152mm	152mm	178mm
