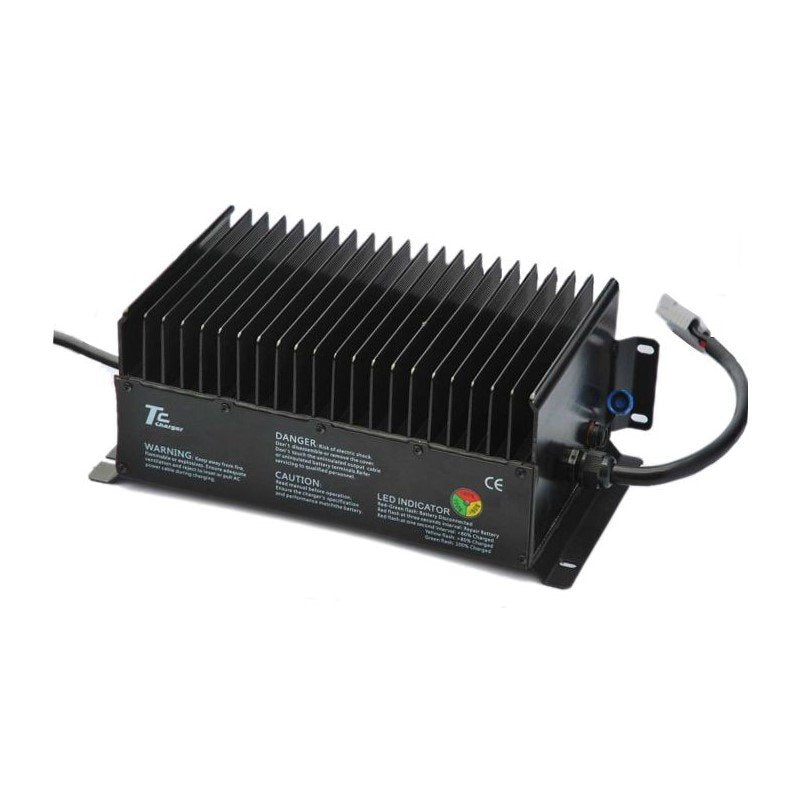

The charger is applicable for various Lead-acid batteries like Flooded, GEL, AGM, hemicolloid etc. It features light weight, small volume, stable performance, high efficiency and reliable security etc. It can be switched automatically between the floating and balancing charging and also has the protection functions of reverse connection, output short-circuit and overload and so on.
The charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo and electric communication system on the railway etc.
The charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars, electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS), solar energy, wind power dynamo and electric communication system on the railway etc.
Advantages
- Internal integrated PFC, no pollution to electric network, avoid shocking on electric network from heavy current.
- Wide input voltage range available for worldwide requirements, convenient for electric-network fluctuation and vehicles exportation.
- High with 93% above efficiency while only about 80% efficiency the traditional chargers can meet.
- Intelligent temperature compensation function in the charging process, preventing the damage to battery caused by charge-off or charge due, greatly extending the lifespan of the battery.
- Fully-sealed and water-proof, protection class IP46. Shock resistance treatment made inside makes vibration-proof level up to SAEJ1378 that can fully meet the standard of automobile appliance usage.
- Flexible and programmable charging mode and preset in 10 unique algorithms. Equipped with CAN communication interface to realize real-time communication with BMS.
Categories: Golf Car,
Turf Machinery
Protection Features
- Thermal Self-Protection: When the internal temperature of the charger exceeds 75°C, the charging current will reduce automatically. If exceeds 85°C, the charger will shut down protectively. When the internal temperature drops, it will resume charging automatically.
- Short-circuit Protection: When the charger encounters unexpected short circuit across the output, charging will automatically stop. When fault removes, the charger will re-start in 10 seconds.
- Reverse Connection Protection: When the battery’s polarity is reversed, the charger will disconnect the internal circuit and the battery, the charging will stop and avoid been damaged.
- Input Low-voltage Protection: When the input AC Voltage is lower than 85V or higher than 265V, the charger will shut down protectively and automatically resume working after the voltage is normal again.
Model | TCCH-48-25 |
Input | 100-240V AC 50/60Hz 14.0/8.1A |
Output | 48V-25.0A @ 220VAC 48V-24.5A @ 115VAC |
Battery | Lead-Acid 24 cells |
Environmental Enclosure | IP46 |
Algorithms | 106 |
Battery Type | Flooded Battery |
Charging Mode | 10 Charging Curves Available |
Default Curve | 2 |
Charging Control | Intelligent temperature compensation, never to be charge-off or charge due |
Battery Capacity | 150AH |
Nominal Output Voltage | 48V |
Max Output Voltage | 65V |
Max Output Current | 25A |
AC Input Voltage Range | AC85V-AC265V |
AC Input Frequency | 45-65 Hz |
AC Power Factor | ≥0.98 |
Full Load Efficiency | ≥93% |
Mechanical Shock & Vibration Resistance Level | Conformance to SAEJ1378 Standard |
Operating Temperature | -40°C to +55°C |
You may also like

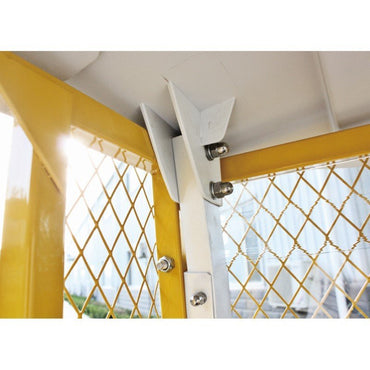

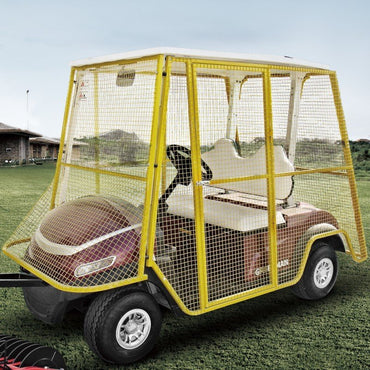

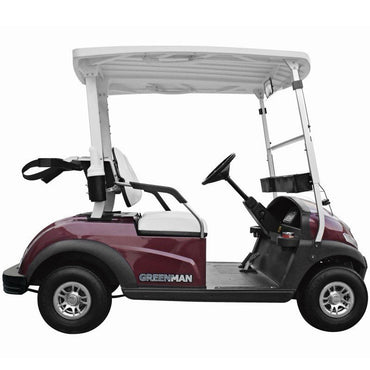

Driving Range Accessory
Regular price
Rs. 47,200.00
Sale price
Rs. 47,200.00
Regular price
Unit price
per

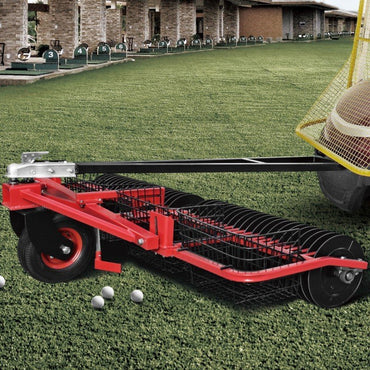

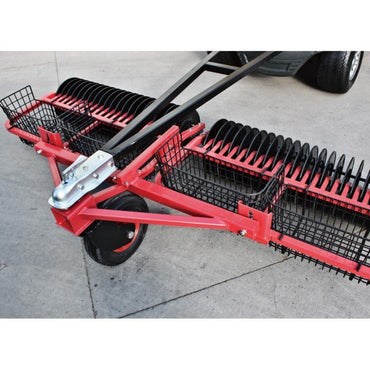

Golf Ball Collector
