Agricare Corporation

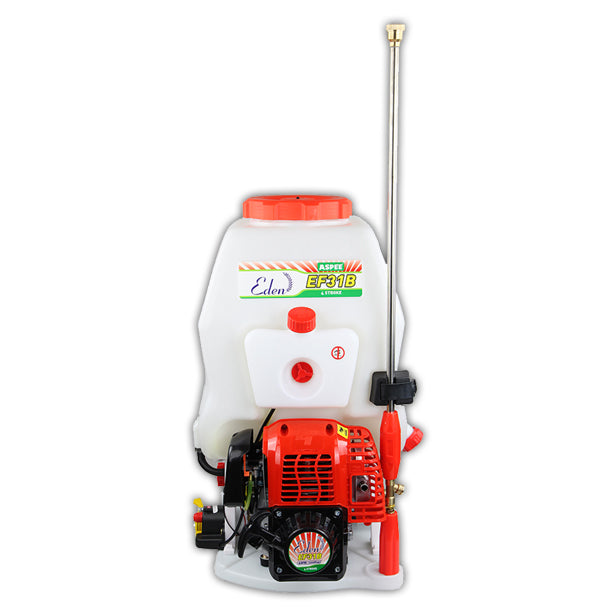

Aspee Petrol Backpack Sprayer
A powerful petrol-engine operated high-pressure knapsack sprayer designed for row crops, ground crops, plantations and tall trees.
- 25.6cc 2-stroke petrol engine with strong output
- Auto agitation system for uniform spraying
- Suitable for cotton, soyabean, vegetables, orchards & plantations
-
Description
-
Features
-
Specifications
-
Application
Description
The Aspee Petrol Backpack Sprayer – ASP-747 (4S) is a high-performance, engine-operated knapsack sprayer ideal for large farms and plantation spraying. Powered by a durable 25.6cc 2-stroke petrol engine, it delivers high pressure for tall trees, orchards, tea & coffee plantations and wide-area crop fields.
The sprayer features a Ruixing diaphragm-type carburetor for consistent engine performance and an auto agitation system to keep chemical solutions uniformly mixed during operation. With adjustable cushion shoulder straps and a 25-litre tank, it is built for long, continuous spraying with reduced operator fatigue.
Features
- Ruixing diaphragm-type tuning carburetor for stable engine operation
- Engine fitted with a heavy-duty easy recoil starter assembly
- Equipped with auto agitation system for uniform chemical mixing
- Highly mobile design for field and plantation spraying
- Economical for spraying costly pesticides
- Adjustable cushion shoulder straps for comfortable use
Technical Specification
| Parameter | Specification |
|---|---|
| Model | ASP-747 |
| Engine Type | 2-stroke petrol |
| Displacement | 25.6cc |
| Engine Power | 1.0 hp (0.72 kW @ 7000 rpm) |
| Net Torque | 1.0 Nm @ 5000 rpm |
| Normal Working Pressure | 100–200 psi |
| Max Working Pressure | 400 psi |
| Discharge | 10–11 L/min |
| Chemical Tank Capacity | 25 L |
| Fuel Tank Capacity | 0.500 L |
| Oil Tank Capacity | Not Applicable |
| Net Weight | 8 kg (approx.) |
Application
- Cotton, soyabean and vegetable crops
- Tea and coffee plantations
- Orchards and tall tree spraying
- Ground and row crop pesticide application
