Green Park Air Compressor

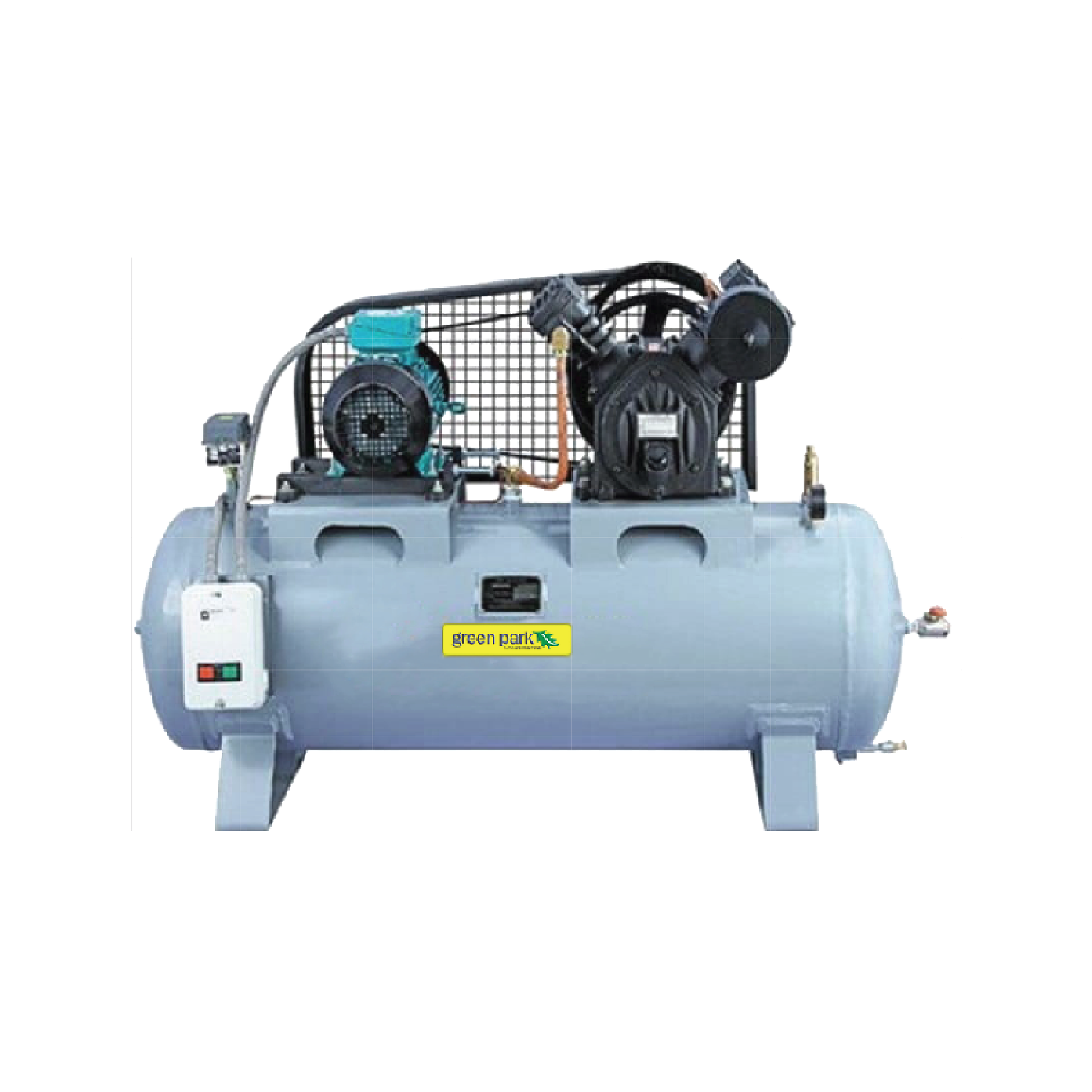

Green Park GPAC 264-3 is an air-cooled air compressor designed with a strong horizontal air receiver and reliable performance parts.
- 3 HP AC motor with double stage two cylinder system
- Includes safety valve outlet valve suction filter drain valve and pressure gauge
-
Description
-
Features
-
Specifications
-
Application
Description
The Green Park GPAC 264-3 Air Compressor is an air cooled model mounted on a horizontal air receiver. It is built with a V-belt drive belt guard outlet valve safety valve suction filter drain valve non-return valve pressure gauge and S/S controls. Its 3 HP three phase motor supports smooth running and stable output for daily operations.
This model works at 960 RPM and delivers consistent air pressure up to 175 PSIG. It offers piston displacement of 10.80 CFM and free air delivery of 7.67 CFM which makes it suitable for regular industrial and workshop needs. The compressor includes an automatic pressure switch and DOL electric starter for easy use.
Features
- Air cooled construction
- Mounted on strong horizontal air receiver
- Equipped with outlet valve safety valve and suction filter
- Includes drain valve non-return valve and pressure gauge
- Comes with DOL electric starter
- Automatic pressure switch for smooth control
- V-belt drive with belt guard
Technical Specification
| Parameter | Specification |
|---|---|
| AC Motor | 3 HP 3 Phase 415V |
| Speed | 960 RPM |
| Working Pressure | 175 PSIG |
| Piston Displacement | 10.80 CFM |
| Free Air Delivery | 7.67 CFM |
| Tank Capacity | 150 liter |
| Air Compressor | Double Stage Two Cylinder |
| Electric Starter | DOL |
| Pressure Switch | Automatic |
| Warranty | Six month warranty |
Application
- Suitable for workshop and general compressed air needs
- Use where steady air pressure up to 175 PSIG is required
- Ideal for tasks supported by double stage two cylinder compressors
- Follow Operator’s manual for usage steps and safety
