Agricare Corporation

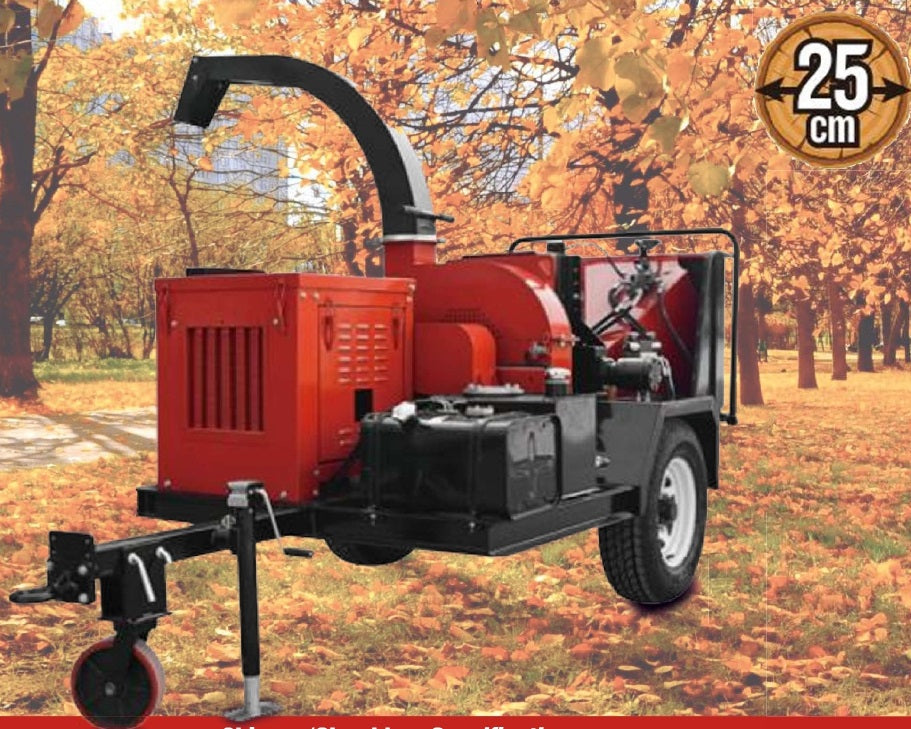

California Trimmer Wood Chipper
The California Trimmer CH25C-8 Wood Chipper is built for heavy-duty chipping of branches up to 25cm with strong hydraulic feeding and a powerful diesel engine.
- Robust hydraulic feeding with 3-shift control
- 8 heat-treated reversible alloy blades
- Industrial grade drive and 360° swivel discharge
-
Description
-
Features
-
Specifications
-
Application
Description
The CH25C-8 Wood Chipper from California Trimmer delivers commercial-quality performance for orchard, estate and farm applications. It is engineered with a strong Chang Chai diesel engine and a reliable hydraulic feeding system that supports forward, stop and backward functions along with adjustable infeed speed. This allows smooth handling of large branches and consistent chipping output.
The machine features an 8-blade reversible alloy cutting system designed for clean cutting and long service life. Its 360° swivel discharge helps direct chipped material exactly where needed. Built with a tough mechanical friction clutch and belt drive, the unit provides dependable operation in demanding working environments.
Features
- Powerful 49hp Chang Chai diesel engine for commercial-grade performance
- Hydraulic feeding system with forward stop and backward options
- Adjustable infeed speed for controlled chipping
- 8 reversible heat-treated alloy blades for efficient cutting
- 360° swivel discharge to direct output with ease
- Industrial mechanical friction clutch with belt drive
- Instant stop safety button and safety bar around the infeed
Technical Specification
| Parameter | Specification |
|---|---|
| Model | CH25C-8 |
| Power | Chang Chai Diesel Engine 49hp 4 Cylinders Water Cool |
| Feeding Type | Hydraulic Feeding 3Shift Forward-Stop-Backward Infeed Speed Adjustable |
| Drive Mode | Industrial Grade Mechanical Friction Clutch + Belt Drive |
| Fuel Tank Capacity | 90L |
| Hydraulic Fluid Tank Capacity | 31L |
| Start | 12V Electric Start |
| Chipper Blade | 8 heat-treated reversible double-edged alloy blade |
| Rotor Size | 780mm Diameter 30mm Thickness |
| Rotor Weight | 156kg |
| Rotor Speed | 1600rpm |
| Infeed Opening | 870mm (W) × 675mm (H) |
| Infeed Roller Size | 385mm Diameter One horizontal roller |
| Infeed Throat Size | 255mm (W) × 264mm (H) |
| Infeed Length | 160cm (Length) Foldable |
| Discharging Direction | 360° Swivel |
| Chipping Capacity | 25cm |
| Safety Device | Instant stop button on top of infeed Safety bar around infeed |
| Overall Size | 5070 × 1730 × 2360 mm |
| Net Weight | 1450kg |
| Warranty | Three months limited warranty |
Application
- Ideal for chipping branches and wood pieces up to 25cm
- Suitable for orchards tea farms and large estates
- Used for clearing pruned branches and converting them into manageable chips
- Hydraulic feeding enables smooth loading of branches without manual force
