Agricare Corporation

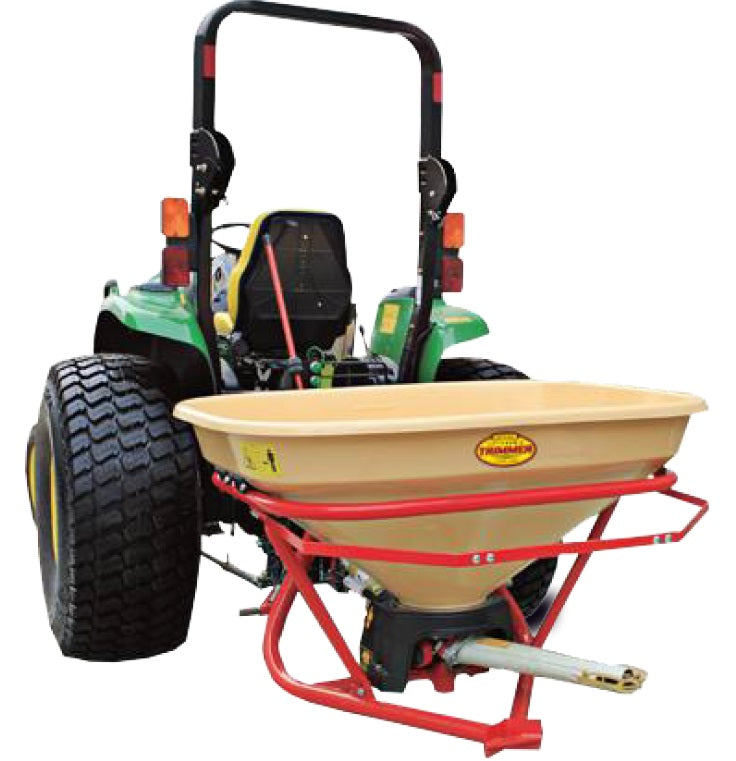

California Trimmer Swing-Adjust Spreader
California Trimmer PS403 is a high-precision pendulum PTO-driven fertilizer and seed spreader designed for farms, turf management, landscaping and professional agricultural applications. It ensures uniform spread, maximum accuracy and superior control in small and medium-sized fields.
- 400-liter hopper capacity for wide-range use
- Precision pendulum mechanism for uniform application
- Adjustable spreading width up to 14 meters
-
Description
-
Features
-
Specifications
-
Application
Description
The California Trimmer Swing-Adjust Fertilizer Spreader PS403 is engineered for superior spreading accuracy and effortless operation, making it the perfect choice for farmers and turf professionals who require precision in fertilizer, seed and granular material application. Powered by tractor PTO, this pendulum-style spreader guarantees identical spread rate on both sides for uniform field coverage and exceptional overlap performance.
Equipped with a 400-liter hopper, compact frame design and short spread path, it is ideal for smaller plots, orchards, vineyards, turf and golf-course maintenance. Its border spread plate allows precise spreading at field edges and tramline borders without wastage. Compatible with fertilizers, seeds, sand, salt and pellets, it offers unmatched versatility in agricultural and turf operations.
Features
- 400-liter hopper capacity — ideal for professional field and turf operations
- Pendulum spread system for uniform and equal distribution
- Adjustable spreading width — up to 14 meters
- Compact, maneuverable design for small area operation
- Border spreading plate for accurate spreading along edges
- Heavy-duty PTO-powered operation for consistent output
- Usable for fertilizer, seeds, sand, salt, pellets & other granules
- Authorized Vicon manufacturing & imported by Agricare Corporation
Technical Specification
| Swing Adjutage Fertilizer Spreader Specifications | |
|---|---|
| Hopper Capacity | 400L |
| PTO Speed | 540rpm |
| Fixing | 3-Point Hitch Attachment for Tractor, Mounting Type Available for Utility Vehicle |
| Fixing Height | 89cm |
| Working Width | 9-14m |
| Spreading Method | Swing beam |
| Max Loading Weight | 480kg |
| Filling Height | 89cm |
| Hopper Width | 144cm |
| Hopper Length | 113cm |
| Optional | Tarpaulin, Calibration Bag, Sieve, Powder Spreader, Spreading Salt Instituitions, Spreading Tubes (9 types) |
| Ideal for | Golf courses, Sports fields and grounds, Horticultural and Municipal applications |
| Warranty | Three months warranty. Refer to Operator’s manual for further details. |
Application
- Field Crops: Uniform spreading of fertilizers & seeds — coverage up to 14m
- Orchards & Vineyards: Controlled narrow-width spreading for tree bases
- Vegetable & Horticulture Farms: Precision nutrient & seed application in small plots
- Golf Courses: Perfect for turf nutrients & top-dressing granules
- Sports Stadiums: Even spreading for turf maintenance & regeneration
- Plantation & Landscaping: Efficient for seeds, fertilizers & soil conditioners
- Snow & Ice Areas: Ideal for salt and sand distribution
Dosage: Follow crop-specific fertilizer or seed rate; machine ensures uniform coverage with adjustable spread width.
Operation Steps:
- Attach spreader to tractor PTO
- Fill hopper with fertilizer, seed or granular material
- Adjust spreading width & border plate settings
- Engage PTO & drive forward for uniform spreading
- Clean hopper and spout after use
