Agricare Corporation
Green Park Push/Tow Type Sprayer
A heavy-duty agricultural sprayer available in Push Type and Tow Type, with options of Honda engine or Electric motor.
- 200L chemical tank for long spraying duration
- Triplex plunger pump for high pressure and stable spraying
- Choose from Honda GX160 engine or Electric motor
-
Description
-
Features
-
Specifications
-
Application
Description
The Green Park Push Sprayer Model LYD45C2T20HH5 is designed for professional spraying in farms, orchards, plantations, gardens and large ground areas. It comes in two easy-to-use designs: a Push Type unit for manual movement and a Tow Type version for connecting with ATVs, garden tractors or lawn tractors.
This sprayer is equipped with a 200-litre tank, FST-45 Triplex Plunger Pump and a high-pressure spray gun. It is available with either a Honda GX160 engine or an Electric motor, allowing users to select the power source best suited to their needs. All components are built to handle lawn and garden chemicals, ensuring long service life and reliable performance.
Features
- Available in Push Type and Tow Type variants
- Choice of Honda GX160 engine or Electric motor
- Strong 200L tank ideal for continuous spraying
- High-pressure spray gun for long-range coverage
- FST-45 Triplex Plunger Pump for stable pressure
- Sturdy hose reel with ample hose length
- Rear 12" tyre and front 4.8" tyre for easy movement
- Optional hitch available for Tow Type use
Technical Specification
| Parameter | Specification |
|---|---|
| Model | LYD45C2T20HH5 |
| Tank Capacity | 200L |
| Pump Model | FST-45 |
| Pump Type | Triplex Plunger Pump |
| Max Suction Capacity | 34 L/min |
| Pump Work Speed | 1200 rpm |
| Working Pressure | 2–3.5 Mpa |
| Pump Suction | 30–45 L/min |
| Gun Shot Horizontal Range | 12–15 m |
| Gun Shot Height Range | 10–12 m |
| Sprayer | High Pressure Gun and Spray Gun |
| High Pressure Tube | Ø8 mm × 30 m and Ø13 mm × 20 m |
| Tyres | Front 4.8'', Rear 12'' |
Engine / Motor Options
| Variant | Power Source | Details |
|---|---|---|
| Push Type – Honda | Honda GX160 Engine | 4.8 hp (3.6 kW) @ 3600 rpm |
| Push Type – Electric | Electric Motor | Optional motor-driven version for quiet operation |
| Tow Type – Honda | Honda GX160 Engine | Same engine with tow hitch for ATV/trailer connection |
| Tow Type – Electric | Electric Motor | Ideal for low-noise and stationary spraying |
Application
- Farms and crop fields
- Orchards and plantations
- Large gardens and landscapes
- ATV or tractor-mounted spraying (Tow Type)
- High-reach spraying for tall crops
You may also like

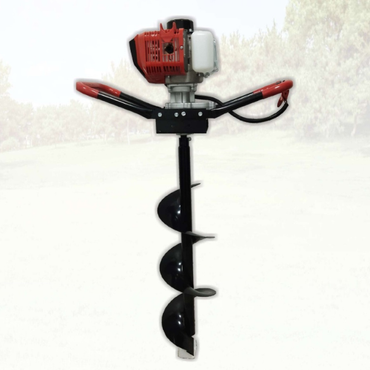

Green Park Earth Auger

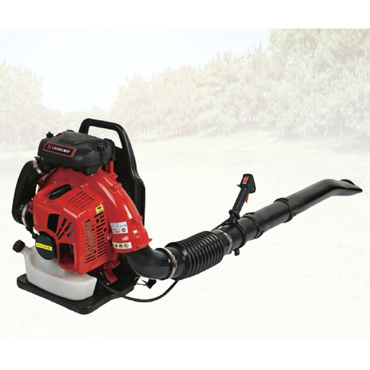

Green Park Backpack Leaf Blower
