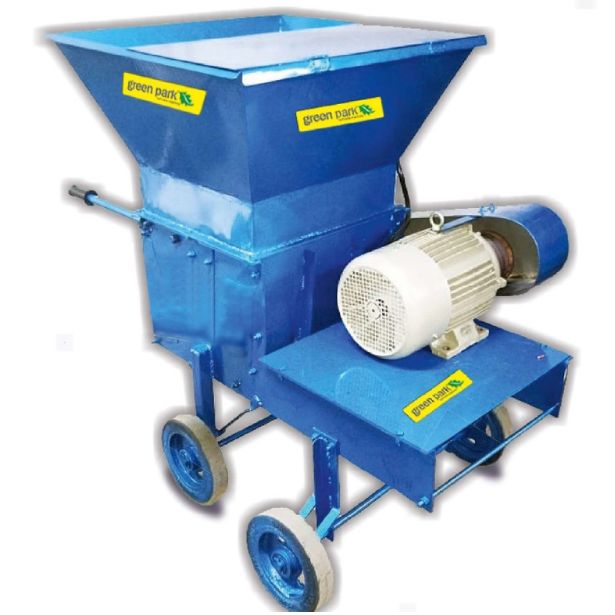

Green Park Portable Leaf Shredder GPSE7
The Green Park GPSE7 Portable Leaf Shredder is built for fast leaf and garden waste shredding with a powerful 3-phase induction motor. It offers reliable output for farms gardens and estate maintenance.
- 7.5hp electric motor with 1440rpm speed
- Large 500mm x 500mm shredding hopper
- Strong M.S. construction with V-belt drive
-
Description
-
Features
-
Specifications
-
Application
Description
The Green Park GPSE7 Portable Leaf Shredder is designed to process dry leaves and light garden waste with steady performance. It uses a 3-phase 440V induction motor delivering 7.5hp at 1440rpm supported by a smooth V-belt drive. The unit has a strong M.S. body with a base frame that ensures durability during continuous field use.
The shredder works with 20 hammer blades made from steel for consistent cutting. Its large hopper and spacious inside chamber allow easy feeding of material. With a shredding capacity of up to 2 CBM per hour the machine helps handle routine leaf waste for farms estates and landscaping work effectively.
Features
- 3-phase 440V IE2 induction motor for efficient operation
- 7.5hp power output at 1440rpm
- Sturdy M.S. fabrication with strong base frame
- 20 hammer blades made from 4mm thick steel
- Large shredding hopper for smooth material feeding
- V-belt drive for reliable transmission
- Shreds up to 2 CBM/H for productive field work
Technical Specification
| Parameter | Specification |
|---|---|
| Motor | 3 Phase 440V each Induction Motor, Class IE2 |
| Electric Power | 7.5hp @ 1440rpm |
| Material of Fabrication | M.S. with base frame |
| Drive | V-Belt |
| Shredder Hammer Blades | 85mm (L) x 38mm (W) x 4mm (Thickness) – 20 Nos. |
| Material of Rotary Shaft | M.S. |
| Rotary Shaft Size | Diameter = 28mm, Length = 160mm |
| Shredding Hopper | 500mm x 500mm M.S. |
| Inside Chamber | 400mm (L) x 400mm (H) x 180mm (W) |
| Shredding Capacity | 2 CBM/H = 1.5MT – 2MT per 8-hour shift |
| Toolkit | Spanner / Screw Driver |
| Warranty | Three months warranty |
Application
- Shredding dry leaves and light garden waste
- Suitable for farms estates and landscaping maintenance
- Useful for compost preparation
- Designed for continuous work during an 8-hour shift
You may also like

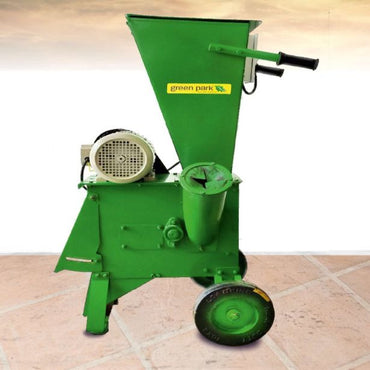

Green Park Chipper Cum Shredder GPSE3

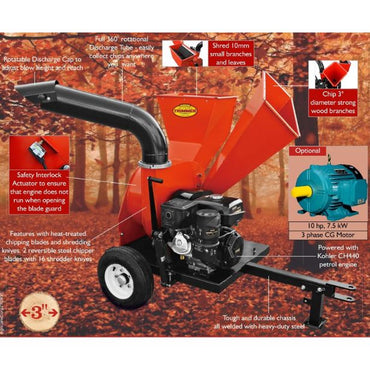

California Trimmer Wood Chipper
