Agricare Corporation
Greenman Pull & Tow Type Sprayers
Greenman Pull & Tow Type Sprayers are heavy-duty, high-capacity agricultural sprayers designed for efficient large-scale spraying operations. Engineered for reliability and precision, these sprayers attach easily to tractors, offering wide coverage and uniform chemical distribution across vast farmland.
- Rugged, field-tested design for high performance and durability.
- Ideal for large farms, plantations and commercial agriculture.
- Tractor-towed for effortless movement and maximum productivity.
-
Description
-
Features
-
Specifications
-
Application
Description
Greenman Pull & Tow Type Sprayers by Agricare Corporation deliver powerful spraying performance for large-scale agricultural operations. Built on a robust chassis with a corrosion-resistant polyethylene tank, these sprayers ensure durability even in tough terrain and long working hours. Equipped with a precision-engineered boom system and high-capacity diaphragm pump, they provide consistent spray pressure and uniform droplet coverage — minimizing wastage and optimizing crop protection.
These sprayers are available in multiple tank capacities and boom widths, catering to diverse farm sizes and crop types. Designed with operator convenience in mind, the Pull & Tow Sprayers include an adjustable hitch, heavy-duty tires and easy control valves for efficient operation. They are ideal for applying pesticides, herbicides and foliar fertilizers, helping farmers achieve better yield and sustainable spraying efficiency.
Features
- High-capacity polyethylene tank (various sizes available for different requirements).
- Heavy-duty galvanized or powder-coated steel frame for long-lasting use.
- High-pressure diaphragm or piston pump for powerful and uniform spraying.
- Foldable boom arms with wide spray coverage (up to 12–16 meters).
- Adjustable pressure control system for precise chemical application.
- Durable, puncture-resistant agricultural tires for smooth towing.
- Easy maintenance design with accessible filters, nozzles and hose connections.
- Compatible with all standard tractor models via adjustable towing hitch.
Techinical Specification

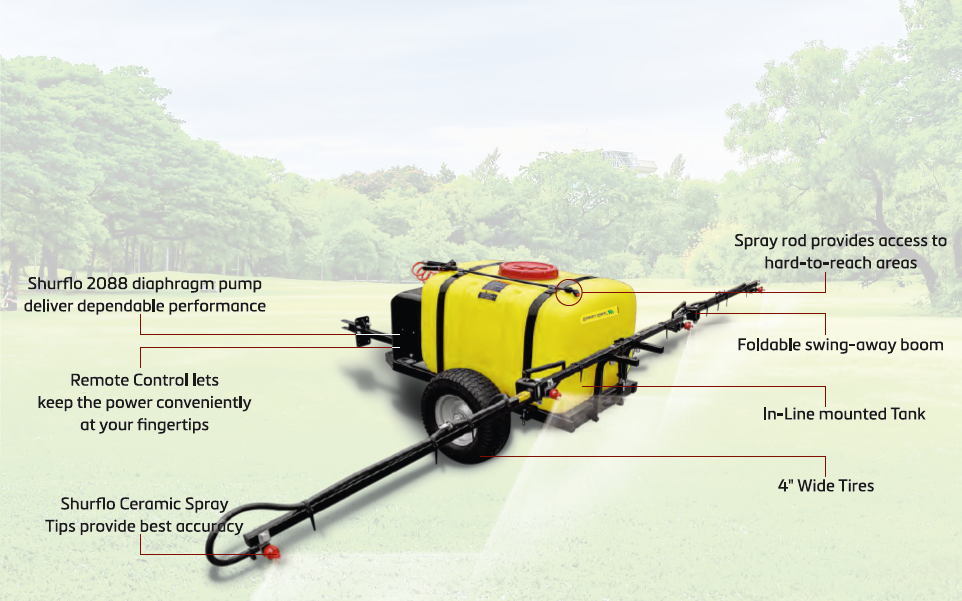

Tow-Type Sprayer| Working Voltage | 12VDC |
| Battery | 35AH |
| Battery Charger | 10A |
| Control | Manual/Remote Control |
| Pump | Shurflo Electric Diaphragm Pump |
| Pump Max. Suction | 3.3GPM (12.5L/min) |
| Rated Work Pressure | 30psi/2bar |
| Max. Work Pressure | 40psi/2.8bar |
| Nozzle | 4 Nos. Shurflo Ceramic Nozzle, Anti-rust |
| Nozzle Height | 500mm |
| Chemical Tank Capacity | 200L |
| Spray Range | 2–4m |
| Remote Control Distance | ≤10m |
| Toolkit | 1/2" Drain Valve, Sealing Tape |
| Warranty | Three months limited warranty. Refer to Operator’s Manual for further details. |

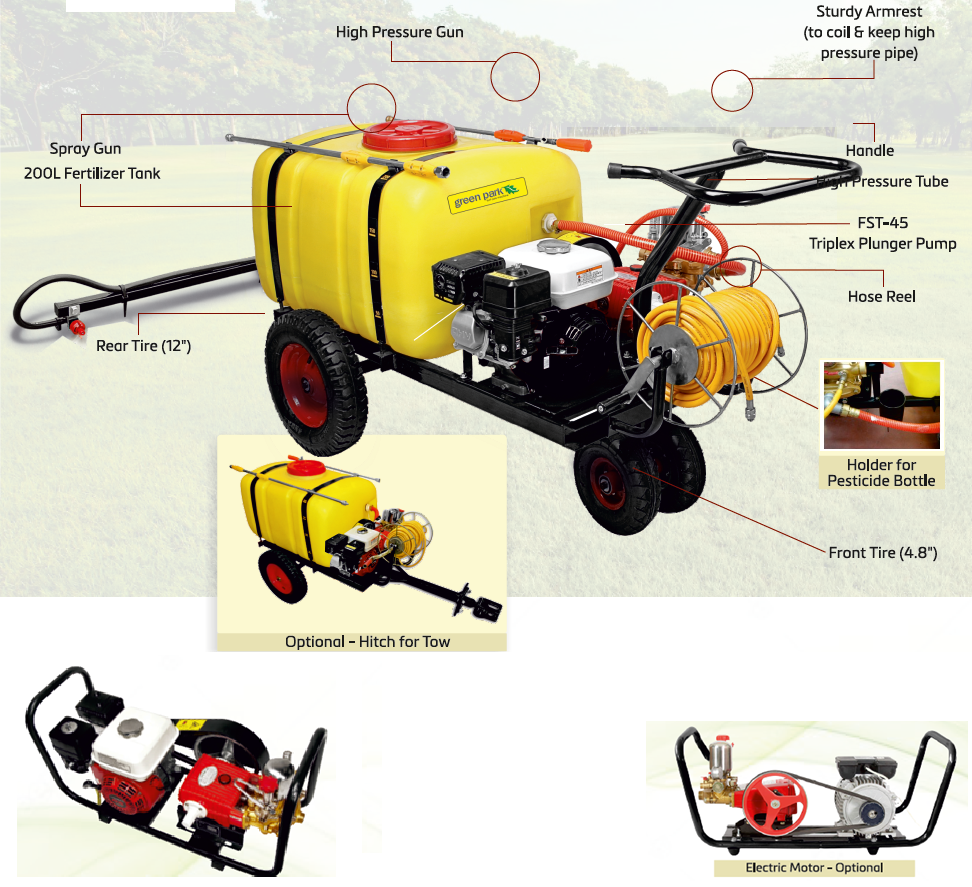

Pull-Type Sprayer
| Model | LYD45C2T20HH5 |
| Engine | XP200 4.7hp @ 3800rpm |
| Pump Model | FST-45 |
| Pump Type | Triplex Plunger Pump |
| Pump Max. Suction Capacity | 34L/min |
| Pump Work Speed | 1200rpm |
| Working Pressure | 2–3.5Mpa |
| Pump Suction | 30–45L/min |
| Gunshot Horizontal Range | 12–15m |
| Gunshot Height Range | 10–12m |
| Chemical Tank Capacity | 200L |
| Spray Nozzle | 4 Nos. Tee-Jet Nozzle |
| Sprayer | High Pressure Gun and Spray Gun |
| High Pressure Tube | ø8mm×30m and ø13mm×20m |
| Tire | Front: 4.8" and Rear: 12" |
| Attached Accessories | Double hose and double spray rod |
| Toolkit | 3/4" Elbow, 1/2" Valve and Sealing Tape |
| Warranty | Three months limited warranty. Refer to Operator’s Manual for further details. |
* Reserve the right to change the parameters without prior notice.
Application
- Operation: Attach sprayer to tractor tow hitch; connect PTO shaft to drive pump; fill tank and select desired boom width.
- Crops: Ideal for cereals, pulses, oilseeds, sugarcane, vegetables and cotton.
- Pressure range: Adjustable 20–40 bar for different spraying needs.
- Coverage: 10–15 acres per tank fill (depending on boom length and spray volume).
- Maintenance: Rinse tank, filters and nozzles after every use; inspect hoses and fittings regularly.
You may also like

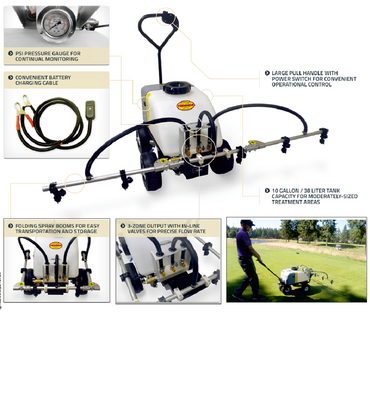

Greenman Spray Mate

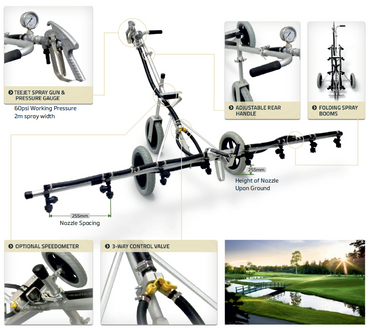

Greenman Spray Hawk

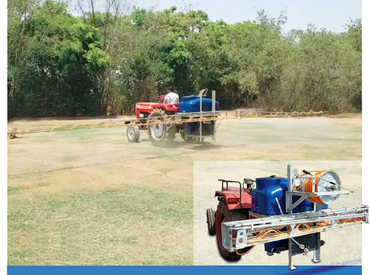

Greenman Tractor-Mount Sprayer

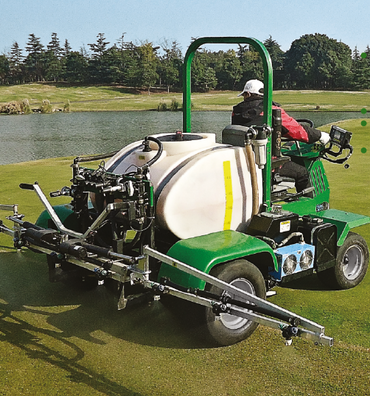

Greenman Ride-On Sprayer
