Agricare Corporation
Honda Powered Brush Cutter GX35 Engine
The Honda Powered LY35H Brush Cutter is a reliable machine fitted with the proven GX35 4-stroke engine for smooth cutting of grass weeds and farm vegetation. It supports multiple cutting heads for different crop and field needs.
- Honda GX35 4-stroke 1.3hp engine
- Easy recoil start with primer bulb
- Heavy duty gearbox and vibration-reducing Ogalloy design
-
Description
-
Features
-
Specifications
-
Application
Description
The LY35H Brush Cutter powered by the Honda GX35 engine is built for long term reliability and smooth performance. The 4-stroke air-cooled engine gives clean operation with lower fuel use and consistent torque for demanding field work. The recoil start with primer bulb makes starting easy even during continuous use.

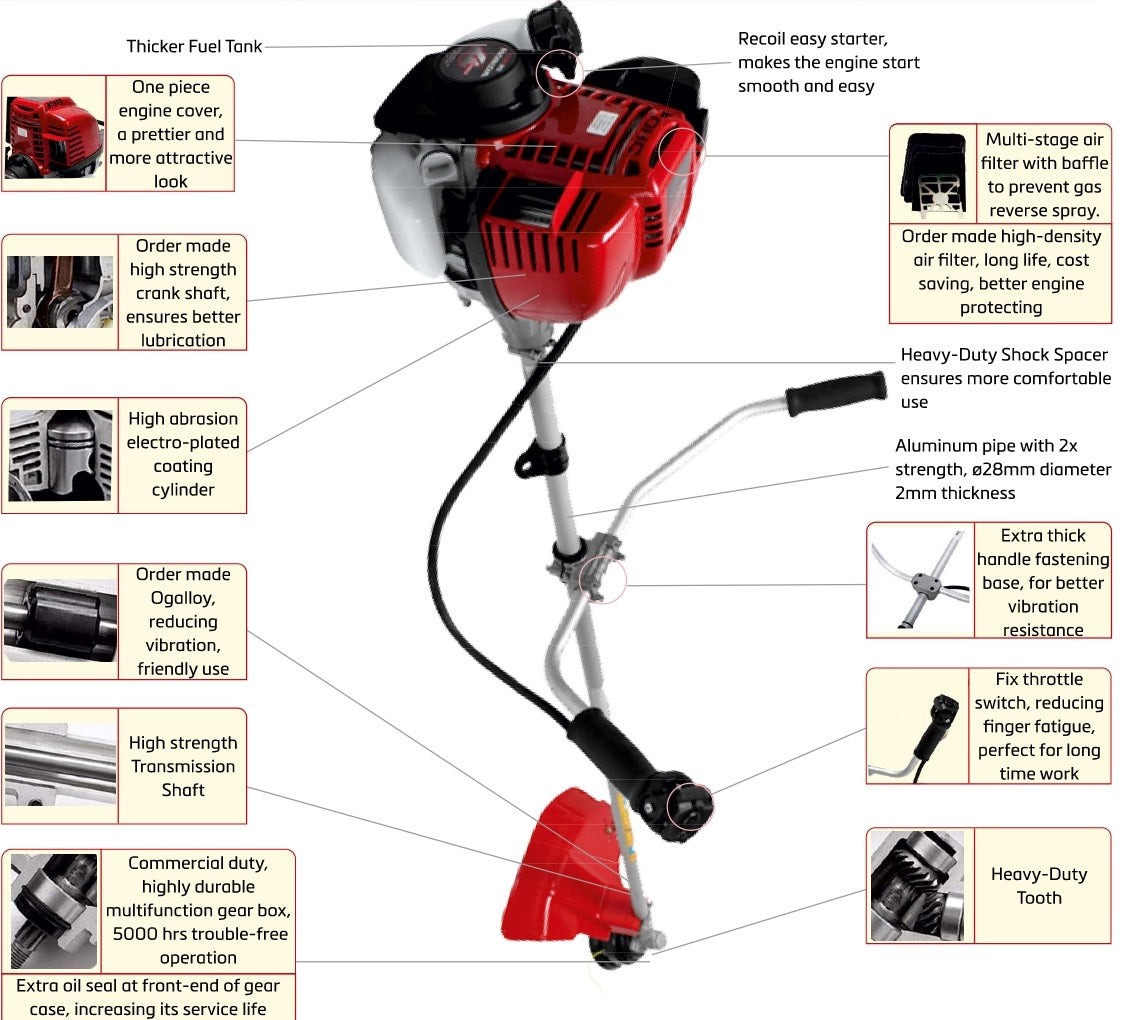

The machine features a high strength transmission shaft commercial duty multifunction gearbox and an extra oil seal at the front of the gear case for longer life. The aluminium pipe with 28mm diameter provides strong support while the heavy duty shock spacer improves comfort. The U-type handle and fixed throttle switch reduce fatigue during long working hours. It supports multiple blades including bar 3T 40T 80T and grain lifter for different crops and field conditions.
Features
- Powered by Honda GX35 4-stroke engine
- Smooth performance fuel efficient and low emission
- Recoil start with primer bulb
- High strength crankshaft and electro-plated abrasion resistant cylinder
- Multi-stage air filter with baffle
- Heavy duty shock spacer for comfort
- Extra thick handle fastening base for better vibration resistance
- Durable multifunction gear case with 5000 hrs trouble free operation
- Supports multiple cutting heads
Technical Specification
| Parameter | Specification |
|---|---|
| Engine Model | Honda GX35T-SDL |
| Type | 4-stroke air cooled |
| Output Power | 1.3hp (0.95kW) @ 7000rpm |
| Output Torque | 1.3Nm @ 5500rpm |
| Displacement | 35.8cc |
| Weight | 3.33kg (engine) |
| Max Speed (No Load) | 10,000 r/min |
| Fuel Tank Capacity | 0.63 litre |
| Lubricating Oil Capacity | 0.1 litre |
| Fuel Consumption | 0.71 L/hr |
| Start | Recoil start with primer bulb |
| Ignition | TCI |
| Cooling Method | Forced air cooling |
| Lubrication | Crankcase pressure driven |
| Bore x Stroke | 39mm x 30mm |
| Reduction Ratio | 1:1.33 |
| Carburetor | Walbro diaphragm rotary valve |
| Spark Plug | NGK |
| Rotation Direction | Counterclockwise (facing output) |
| Working Pipe | Aluminium ø28mm 2mm thickness 1500mm length |
| Cutting Head | Nylon bar 3T 40T 80T grain lifter |
| Handle | U type |
| Carrying | Side attached |
| Toolkit | Spark plug spanner 4mm L-key 5mm L-key spanner 8-10 goggles |
| Warranty | Three months limited warranty |
Application
- For rice wheat pepper corn stalk and garden grass
- For clearing weeds bushes and field vegetation
- Use nylon head for grass
- Use bar blade or 3T blade for medium weeds
- Use 40T or 80T blade for thick bushes
- Use grain lifter for crop support
- Suitable for farms roadside edges and orchards
You may also like

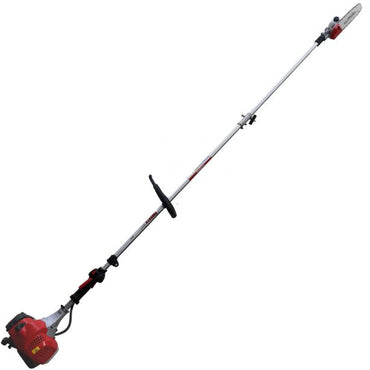

Green Park Pole Saw

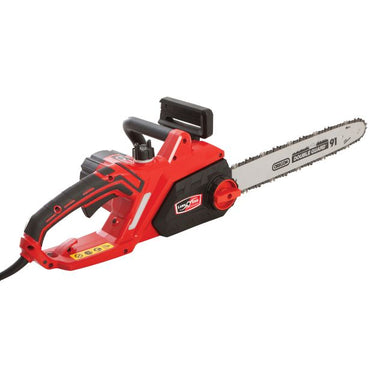

Lawn Star Electric Chainsaw

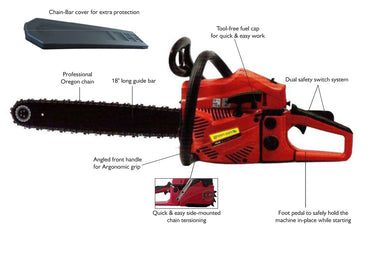

Green Park Chainsaw

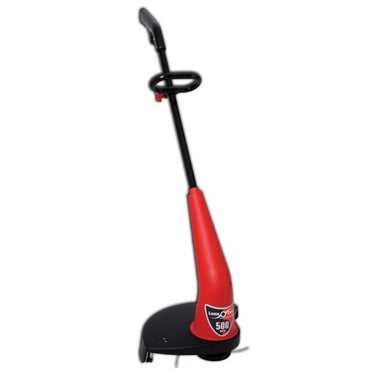

Lawn Star Electric Grass Trimmer
