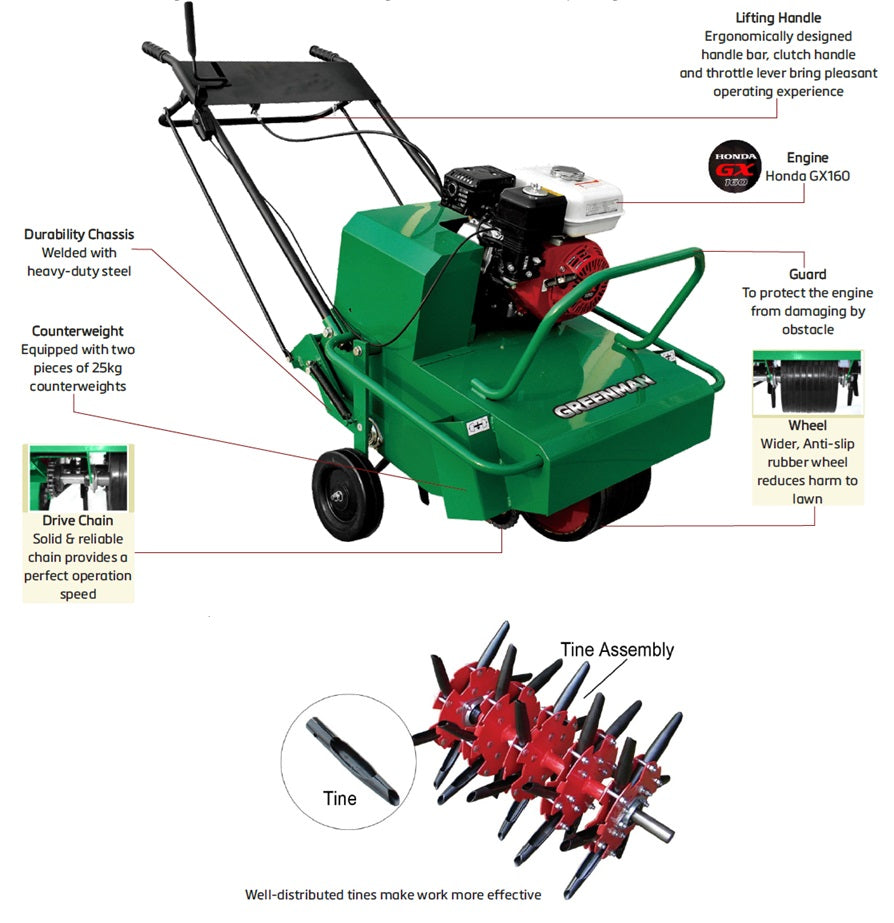

Greenman Hollow Tine AE500
Greenman Hollow Tine AE500 is a professional-grade lawn aerator designed to relieve soil compaction, promote healthy root growth, and enhance turf performance. Ideal for sports fields, golf courses and large lawn areas.
- Removes soil plugs to improve water, air and nutrient penetration.
- Built for durability, efficiency and consistent aeration depth.
- Suitable for commercial, agricultural and landscaping applications.
-
Description
-
Features
-
Specifications
-
Application
Description
Greenman Hollow Tine AE500 by Agricare Corporation is an advanced turf aeration machine that ensures deep and effective soil aeration using precision-engineered hollow tines. It extracts compacted soil cores, improving oxygen exchange and enabling roots to access essential nutrients and moisture. This process rejuvenates grass health, leading to stronger, greener, and more resilient lawns.
With its rugged construction and ergonomic design, the AE500 offers superior performance across varied soil types. Its adjustable tine depth and wide coverage area make it ideal for professional turf maintenance. Whether maintaining sports fields, golf courses, or large landscapes, the Greenman Hollow Tine AE500 delivers consistent aeration quality while minimizing turf damage.
Features
- Precision-engineered hollow tines for deep and uniform soil aeration.
- Heavy-duty frame for long-term reliability and reduced maintenance.
- Improves soil structure, water infiltration, and root development.
- Adjustable tine depth for different turf conditions.
- High operational efficiency with wide working width coverage.
- Easy to attach, operate, and service.
- Ideal for sports fields, golf courses, and commercial lawns.
Aerator AE500 Specifications
| Engine | Honda GX160 |
| Power Output | 4.8hp (3.6kW) @ 3600rpm |
| Displacement | 163cc |
| Clutch Type | Belt Tension Clutch |
| Drive | Self-Propelled |
| Deck Material | Steel |
| Ground Speed | 4.75 km/h |
| Working Width | 20” / 500mm |
| Hole Depth | Up to 80mm, adjustable |
| Tine | Ø20mm, 30 pcs |
| Hole Pattern | 100 × 165mm |
| Holes Qty/m² | 76 pcs |
| Safety Clutch Lever | Yes |
| Work Efficiency | 2420 m²/h |
| Warranty | Three months limited warranty. Refer to Operator’s Manual for further details. |
* Reserve the right to change the parameters without prior notice.
Application
- Use timing: Ideal during early growing seasons (spring or autumn) for maximum turf recovery.
- Operation: Attach the AE500 to the tractor via standard 3-point linkage.
- Depth setting: Adjust tine depth between 3–6 inches depending on soil compaction.
- Coverage: Aerate once per season or as needed for heavily compacted areas.
- Maintenance: Clean tines after use and lubricate moving parts regularly for best performance.
